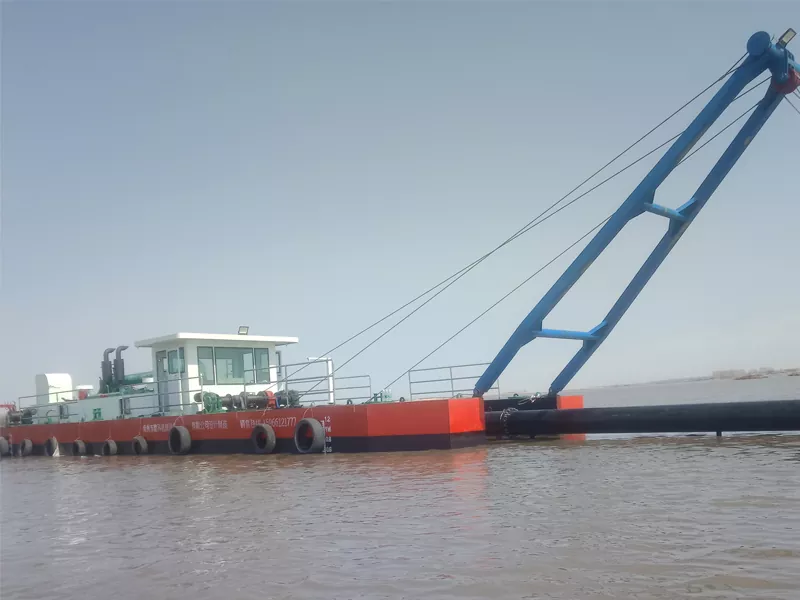

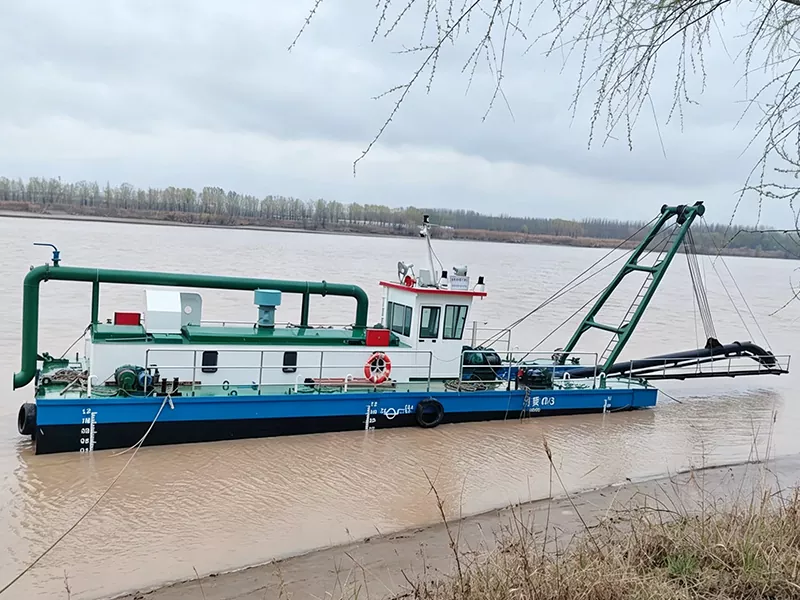

Hydraulic Jet Suction Dredger

When mining sand or minerals at depths of 20m to 35m, cable and ladder control must be precise. The Hydraulic Jet Suction Dredger utilizes high-torque hydraulic winches to maintain the perfect suction angle. Combined with the water-jet "boiling" effect, this allows for the extraction of high-density slurry from deep-seated layers that standard mechanical pumps cannot reach.

Industrial tailings often have varying densities. The Hydraulic Jet Suction Dredger features integrated pressure relief valves and overload protection. If the suction head encounters high-viscosity sludge, the hydraulic system automatically adjusts the torque, ensuring the WN/PNS slurry pump maintains a constant discharge velocity over 1000m-2000m pipelines.

We equip our Hydraulic Jet Suction Dredgers with premium T6ED series triple pumps. This allows independent power distribution to the ladder winch, swing winches, and the high-pressure jet pump, ensuring that a surge in one system doesn't affect the suction performance of another.

To ensure 24/7 operation in tropical climates like Nigeria or Southeast Asia, every ship features a high-capacity oil-air cooler. Keeping the hydraulic oil below 65°C preserves the life of the vane pumps and seals, significantly reducing long-term maintenance costs.

Our hydraulic-driven jet pumps allow for real-time flow adjustment. Whether you are dealing with loose river sand or semi-consolidated silt, the operator can adjust the "Fluidization Power" from the cabin, ensuring an optimal solid-to-water ratio (up to 25%) in every dredging cycle.

FAQ

Q: What is the main advantage of a hydraulic jet dredger over a mechanical one?

A: "Control and Protection." The Hydraulic Jet Suction Dredger offers stepless speed control and inherent overload protection. If the suction head gets stuck, the hydraulic relief valve prevents mechanical breakage, which is a common and expensive failure in pure mechanical drive systems.

Q: How do you handle spare parts for the hydraulic components?

A: We use internationally standardized SAE and DIN fittings and globally recognized pump/motor brands. Dingke provides a "Hydraulic Mission-Ready Kit"with every ship, ensuring your crew can perform routine maintenance easily in remote mining sites.

Q: Can this vessel be customized for offshore mineral recovery?

A: Absolutely. Our Senior Marine Designers can customize the Hydraulic Jet Suction Dredger with reinforced hulls and high-pressure deep-sea jetting systems to meet the specific requirements of coastal ilmenite or tin mining.
