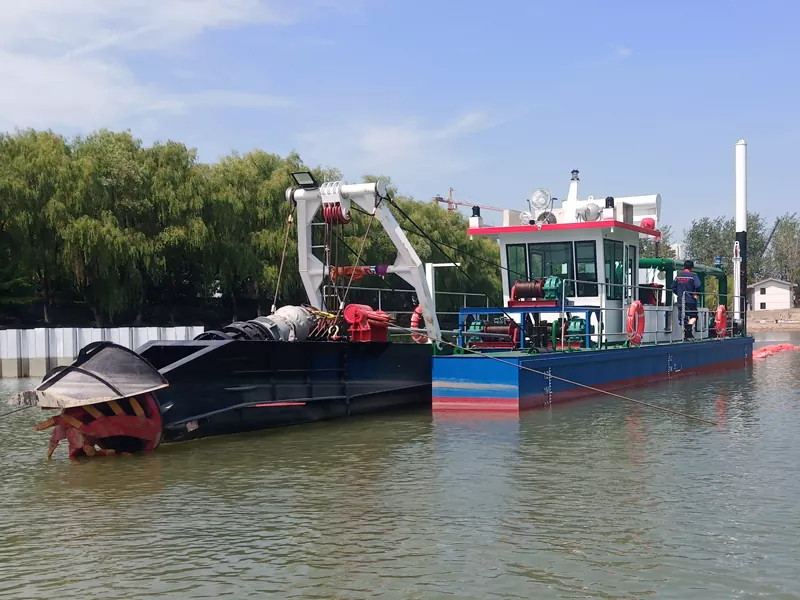

Dk200 Cutter Suction Dredger

1.  High-Performance Power System

At the heart of the DK200 Cutter Suction Dredger, we utilize the Cummins KTA-19 marine diesel engine (315kw). Unlike standard engines, this power unit is optimized for the high-torque demands of hydraulic dredging. Paired with a Fada FD300 Gearbox (2:1 ratio), the system ensures seamless power transmission, reducing fuel consumption while maintaining a stable 1800r/min output. All components are covered by Global Joint Warranty, ensuring peace of mind for international operators.

2. Superior Wear Resistance:

To handle abrasive sand and gravel, the DK200 Cutter Suction Dredger is equipped with a Shijiazhuang Warman 10/8 pump made from High-Chrome Alloy.

· Longevity: The impeller is rated for 200,000 m³, and the pump shell for 500,000 m³ of throughput.

· Efficiency: With an 800m³/h flow rate and 40m head, it maintains peak performance even at a 1000m discharge distance.

3. Precision Engineering & Hull Durability

The hull is constructed using high-grade marine steel with a 6mm bottom and side plate thickness. Our Elite Design Team utilizes CAD and SolidWorks modeling to ensure the DK200 maintains a low 0.8m draught, making it perfect for shallow water dredging, channel maintenance, and port construction. The modular design allows for easy transport and rapid assembly on-site.

4. Safety and Turnkey Equipment

Every DK200 Cutter Suction Dredger comes fully equipped for immediate operation. Beyond the main machinery, we include a 24kw Generator, integrated Gantry systems, and a full suite of Maritime Safety Gear (Life jackets, buoys, extinguishers). Our electrical jenny winches feature automatic braking for safe bridge lifting and swing operations.

DK200 Dredger Parameter Table

Beyond the Machine: Global Lifecycle Support

Choosing Dingke Dredger means more than just purchasing equipment. We provide:

● On-site Installation: Our professional overseas team travels to your site for assembly and commissioning.

● Operator Training: We ensure your crew is fully trained on the DK200’s hydraulic systems and maintenance protocols.

● Global Footprint: With successful projects in Nigeria, Indonesia, and Serbia, we understand the logistical and geological challenges of global dredging.
