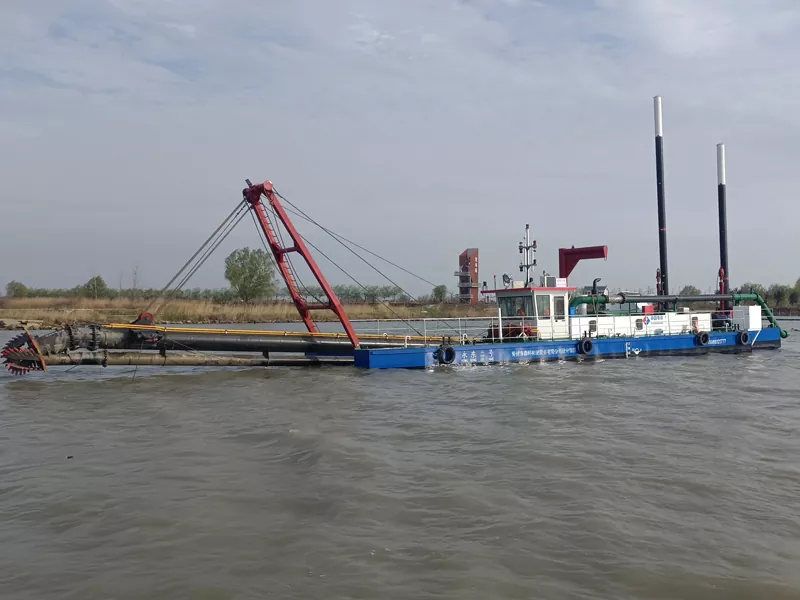

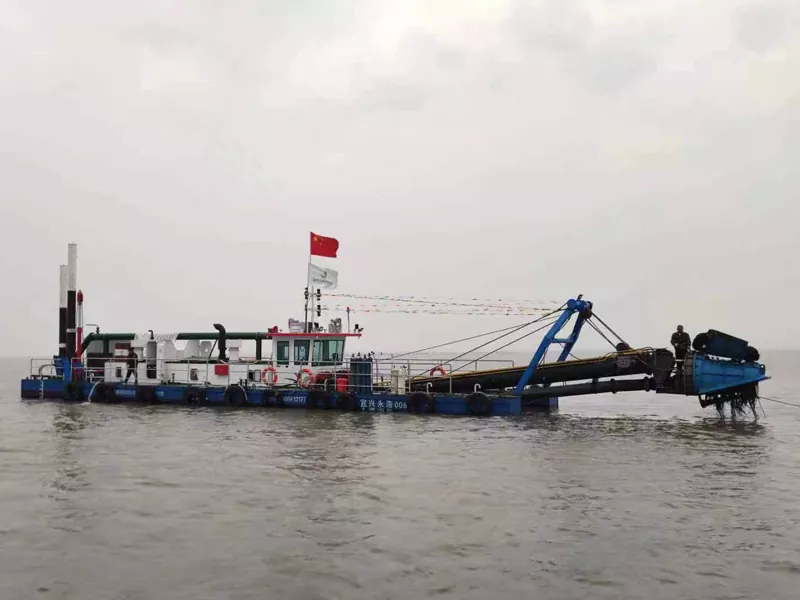

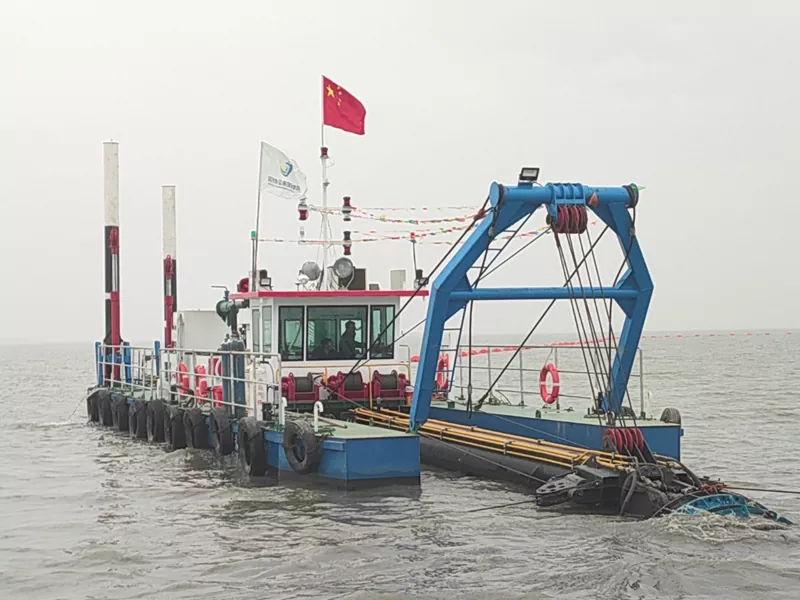

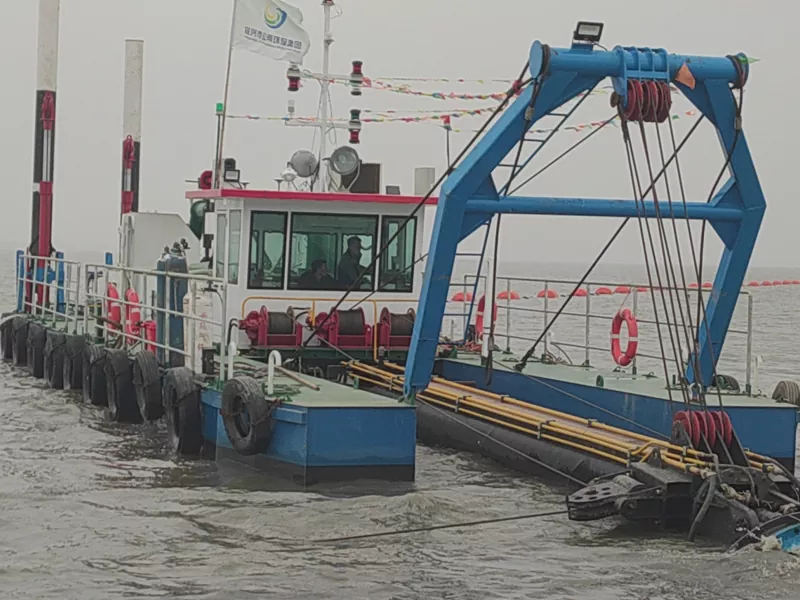

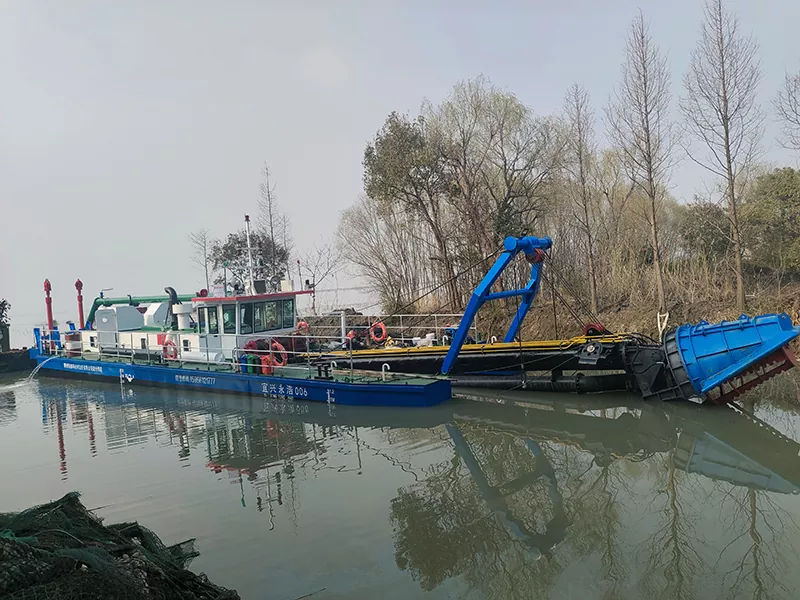

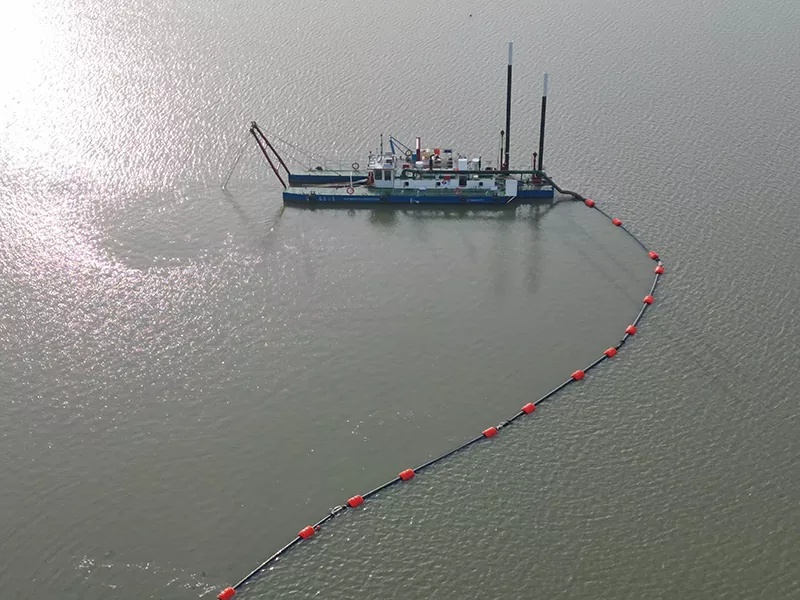

Dk300 Cutter Suction Dredger

Key selling points

Our Dk300 Cutter Suction Dredger differs significantly from other products on the market, possessing a major advantage.

● 20%-30% Efficiency Boost: The integrated hydraulic spud carriage system allows for continuous dredging without frequent repositioning. This results in significantly higher cubic meters per hour and lower operational costs.

● 1500m Ultra-Long Discharge: Equipped with a specialized Shijiazhuang 250WN slurry pump, the DK300 can transport sediment over 1500 meters without the immediate need for a booster station.

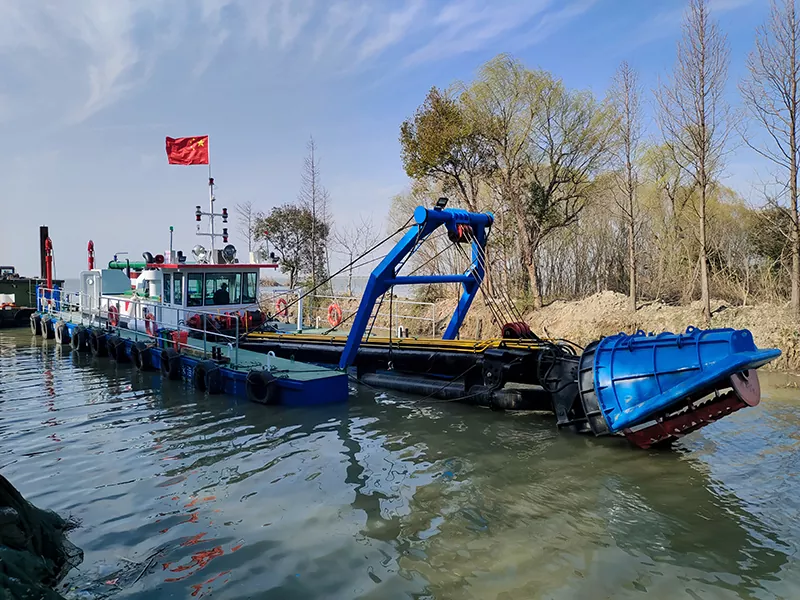

● Deep-Water Precision: With a 12-meter dredging depth and a high-torque 1200mm alloy cutter head, this vessel is the ideal channel dredger ship for maintaining deep-water navigational routes.

Product core parameter data

FAQ: Professional Insights on DK300 Cutter Suction Dredger

Q1: What is the main advantage of the DK300’s Hydraulic Carriage System?

A: The carriage system is a game-changer for project efficiency. Traditionally, a dredger must stop to reposition its spuds. With our integrated hydraulic carriage, the DK300 can move forward 2.5 meters automatically during the swing process. This continuous operation increases the total earthwork output by 20% to 30% compared to standard vessels, significantly reducing your cost per cubic meter.

Q2: Can the DK300 Cutter Suction Dredger handle hard-packed clay or compacted sand?

A: Yes. The DK300 is equipped with a high-torque 1200mm diameter alloy steel cutter head powered by a dedicated 122kW auxiliary engine. With 5 replaceable alloy teeth and a 50kW cutting power, it is specifically designed to break up consolidated materials before they are suctioned by the 1500m³/h Shijiazhuang pump.

Q3: What is the maximum effective discharge distance for the DK300?

A: The standard DK300 configuration can discharge slurry up to 1,500 meters horizontally without an additional booster pump. This distance depends on the concentration of the solids and the elevation of the discharge point. For longer distances, Dingke can customize the pump’s head (currently 55m) or provide matching booster stations.

Q4: How does Dingke ensure the durability of the dredger in corrosive environments?

A: We prioritize longevity through three layers of protection:

1. Marine-Grade Steel: 6mm-10mm thickened hull plates.

2. High-Alloy Pump: The 250WN slurry pump uses wear-resistant high-chrome alloy.

3. Marine Coating: We apply heavy-duty anti-corrosion marine paint. Additionally, our ISO9001 and BV certifications guarantee that all welding and assembly meet international maritime standards.

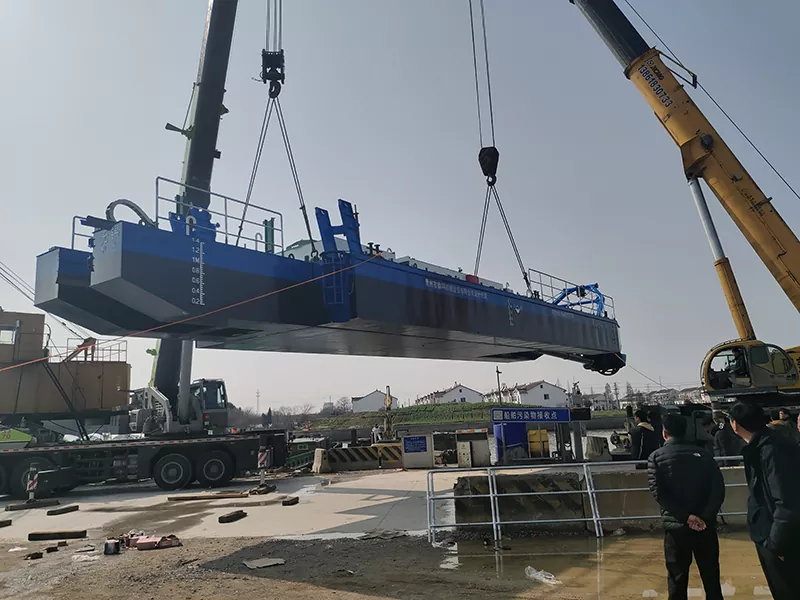

Q5: Is the DK300 easy to transport to inland or remote project sites?

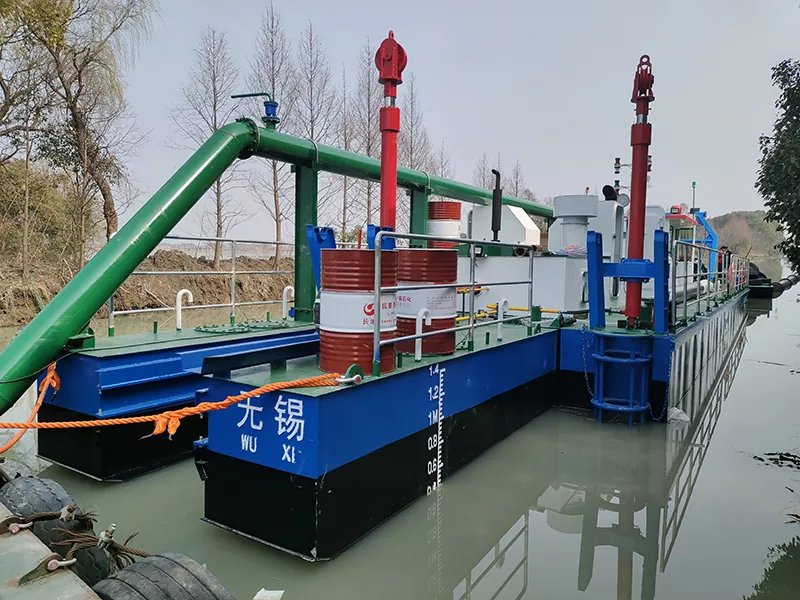

A: Absolutely. We use a modular dismountable design. The DK300 consists of one main pontoon, two side pontoons, and one carriage pontoon. All sections are sized for standard road trailers or flat-rack containers, allowing for cost-effective global shipping and rapid on-site assembly by our Overseas Technical Team.

Q6: What kind of after-sales support does Dingke provide for international clients?

A: We provide lifecycle support. This includes on-site installation, commissioning, and professional operator training. Because we use global brands like Weichai and Hangzhou Advance, you can access local maintenance and spare parts worldwide. For proprietary parts, Dingke maintains a rapid-response warehouse to minimize your project downtime.
