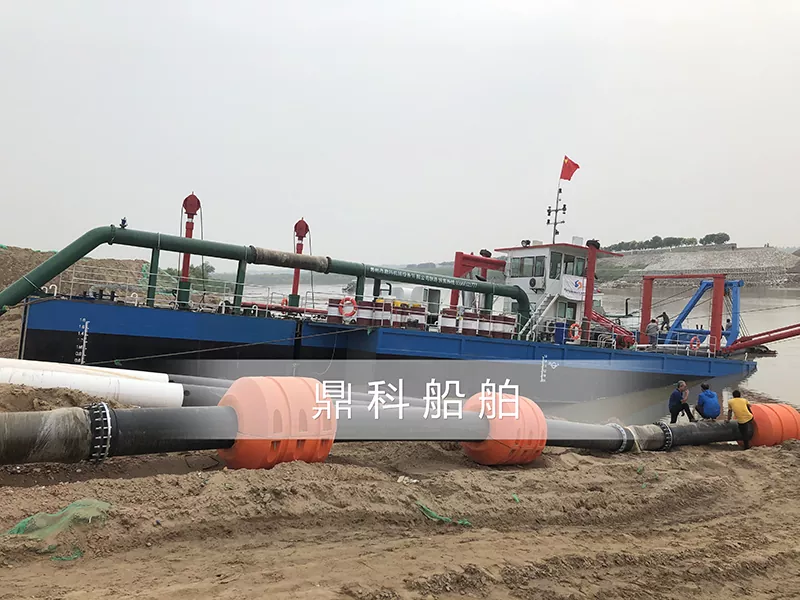

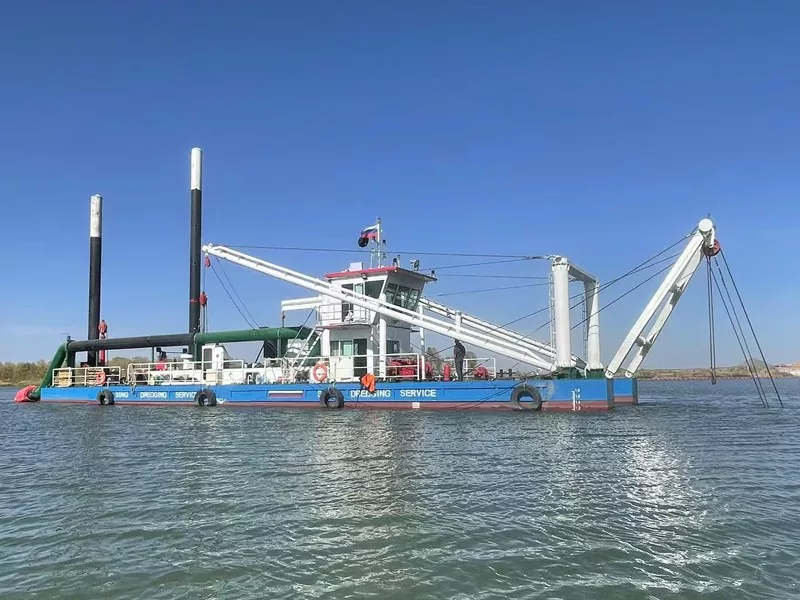

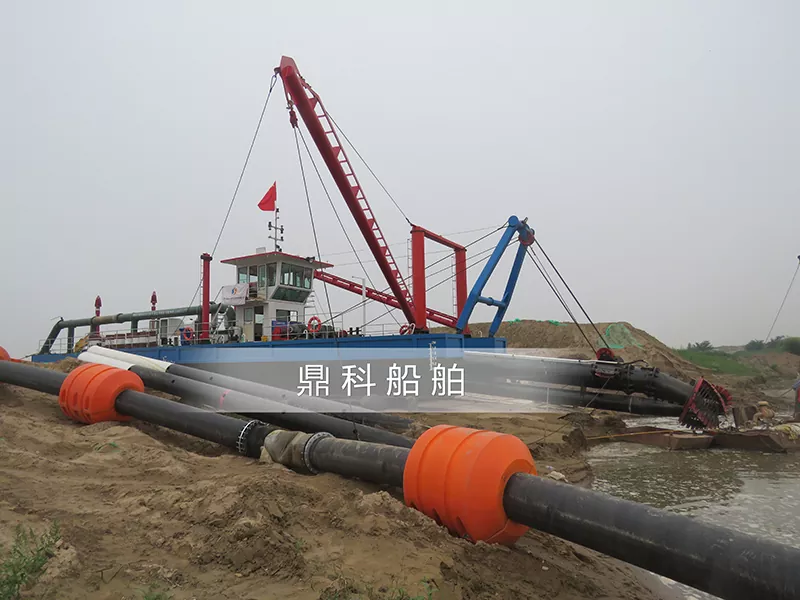

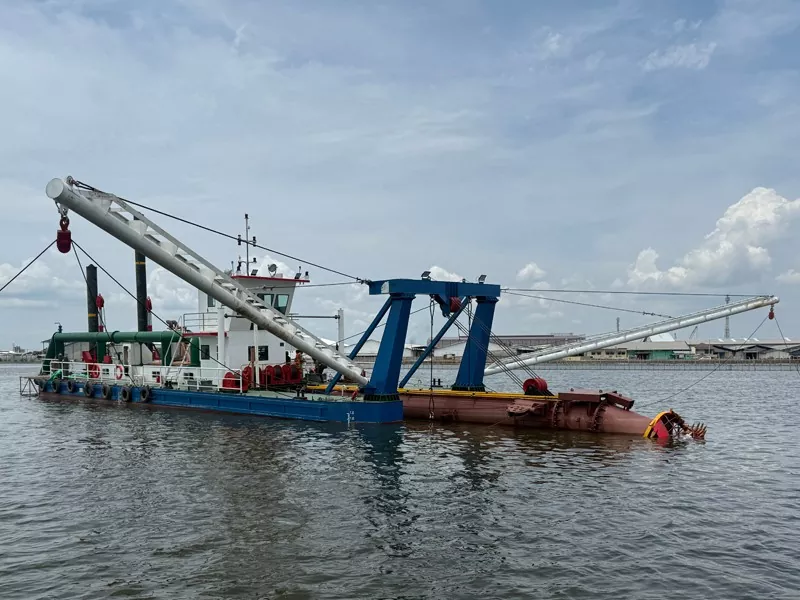

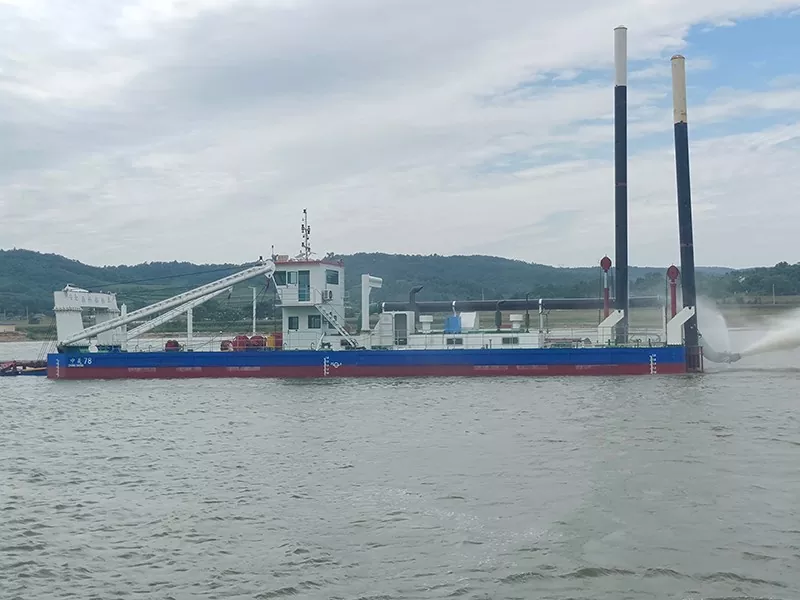

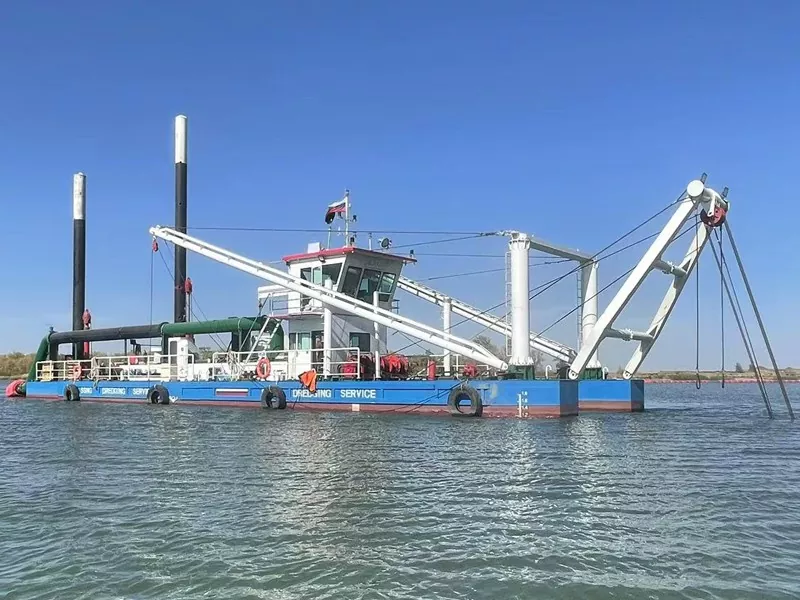

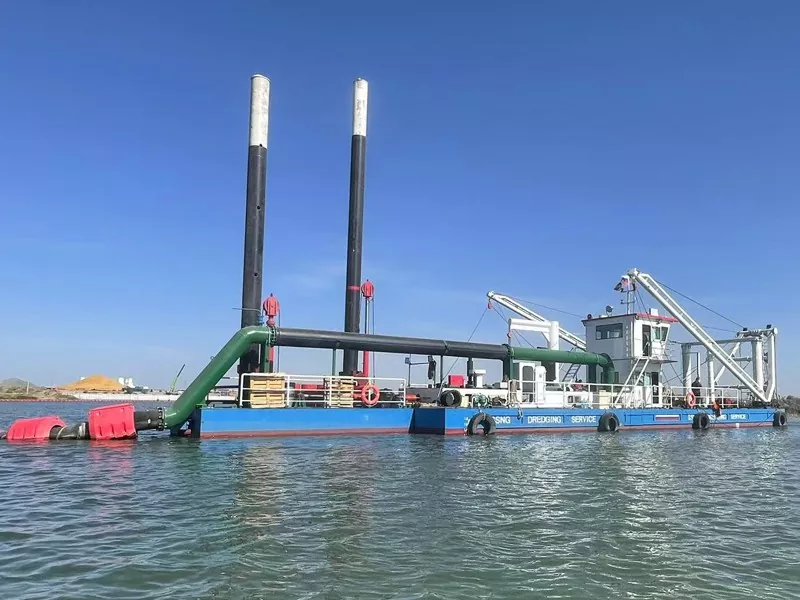

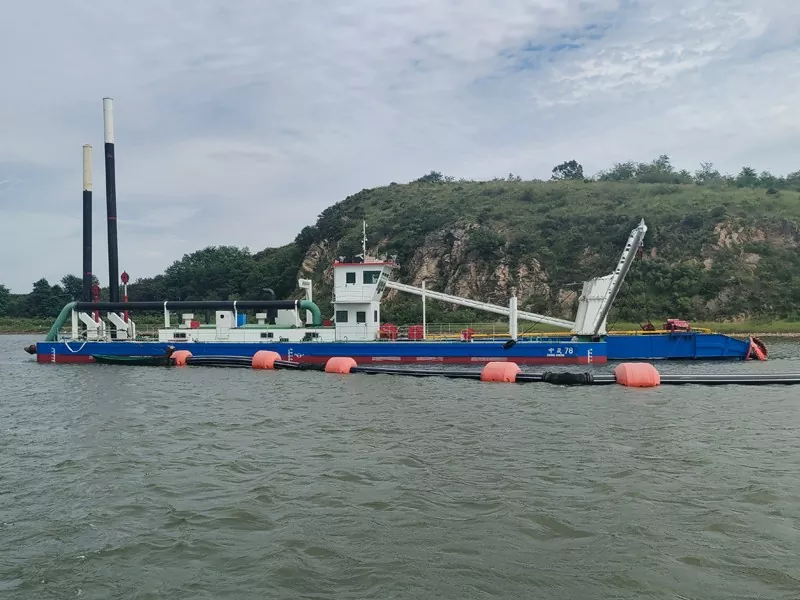

DK500 Cutter Suction Dredger

● Intelligent PLC Control: Transition from manual to digital. The PLC Single-hand centralized control allows the operator to manage the entire dredging process with high precision, reducing fatigue and increasing safety.

● 3800m³/h High-Volume Output: Equipped with the legendary WN450 slurry pump, the DK500 Cutter Suction Dredger delivers a massive flow rate, capable of transporting sediment up to 2000 meters away with a 60-70m head.

● 4-Meter Long-Stroke Carriage System: The advanced hydraulic spud carriage features a 4m stroke, allowing for longer continuous dredging cycles and significantly reducing repositioning downtime compared to smaller models.

● Integrated Heavy Lifting: Features an on-board 3-ton cantilever crane for easy maintenance of the pump and hydraulic components, ensuring maximum uptime in remote locations.

Core technical parameters

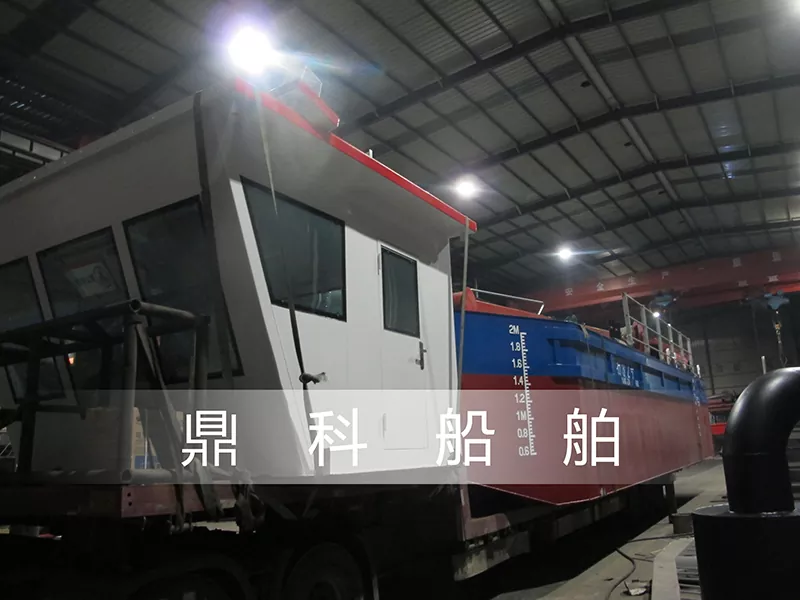

Shipping and on-site assembly

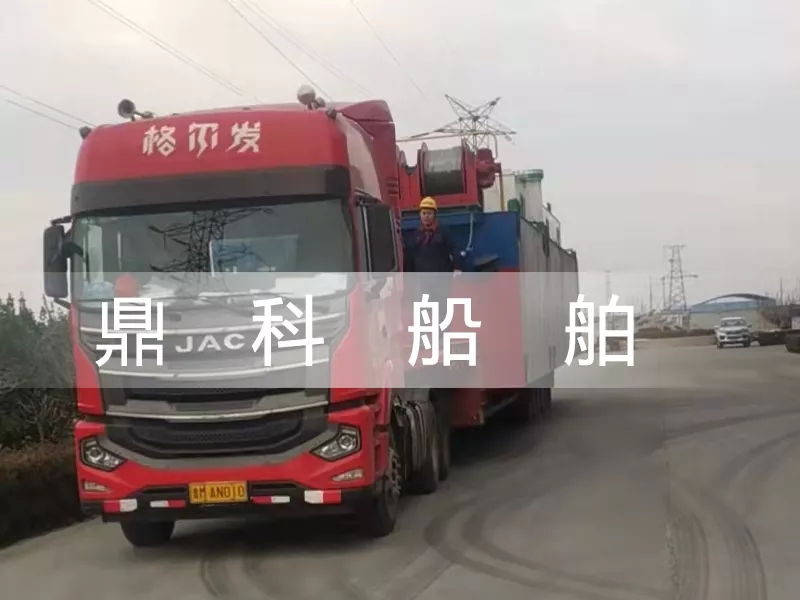

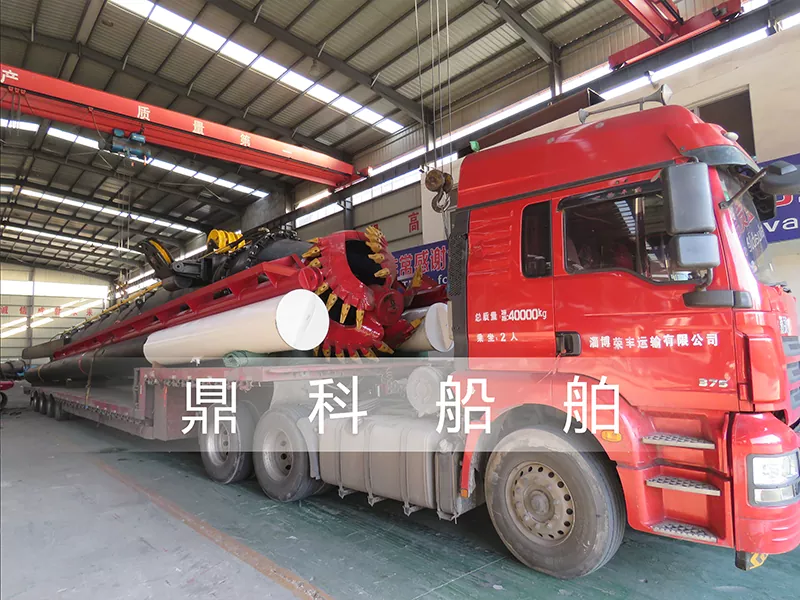

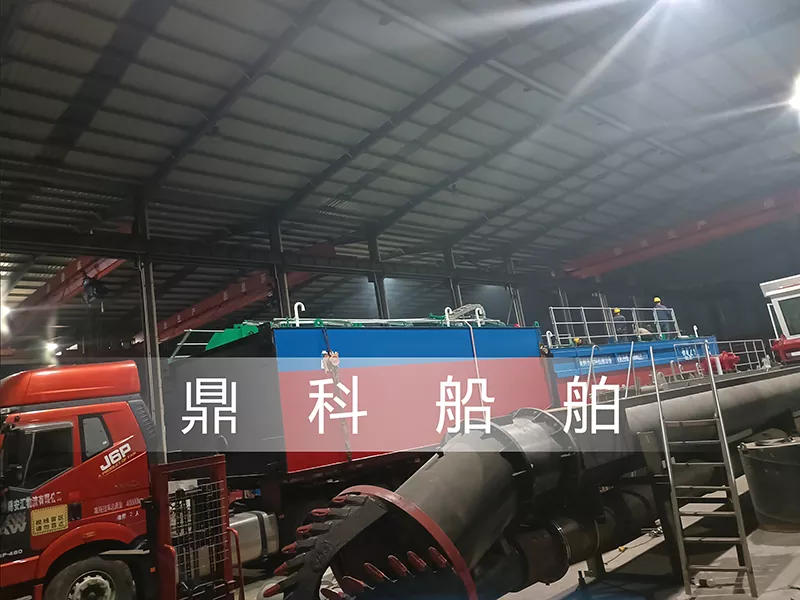

1. Modular Design for Global Delivery

Despite its massive 41.5-meter total length, the DK500 Cutter Suction Dredger is engineered with a sophisticated modular design. Each pontoon (Main, Trolley, Front, and Rear) is precision-built to fit standard logistics requirements, ensuring safe and cost-effective shipping to any port worldwide.

2. Expert On-site Assembly & Support

Our service doesn't end at the factory gate. Dingke dredger’s Elite Overseas Installation Team follows the vessel to your site. From joining the pontoons to the complex calibration of the PLC control system and the 18m spud installation, we provide full turnkey support to ensure the DK500 is mission-ready from day one.

FAQ

Q: How does the PLC system improve my project's ROI?

A: The PLC system allows for more accurate dredging patterns and real-time monitoring of pump pressure and engine load. This prevents equipment strain and optimizes the solid-to-water ratio, leading to lower fuel consumption and faster project completion.

Q: Can the DK500 Cutter Suction Dredger be customized for specific soil conditions?

A: Yes. While the standard 1700mm cutter is ideal for sand and clay, our Senior Marine Designers can customize the cutter teeth and pump impeller materials to handle high-abrasion mining or rocky riverbeds.
