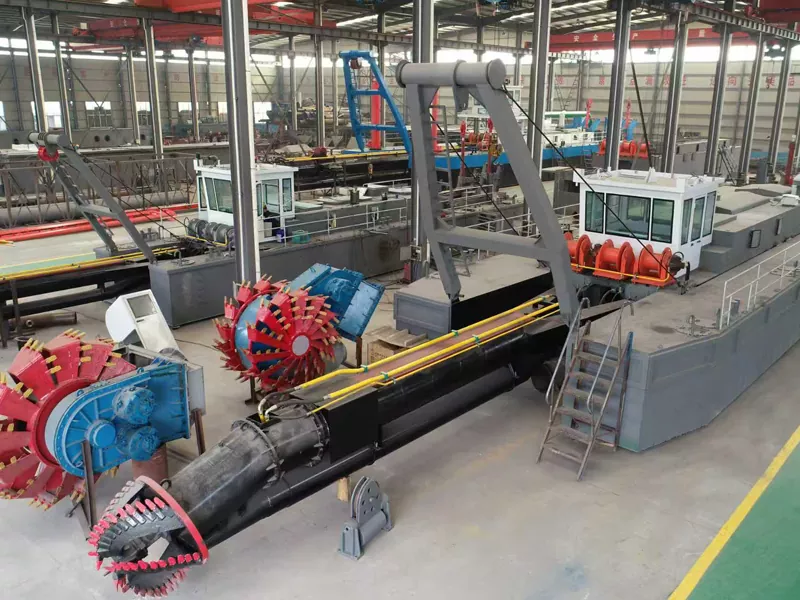

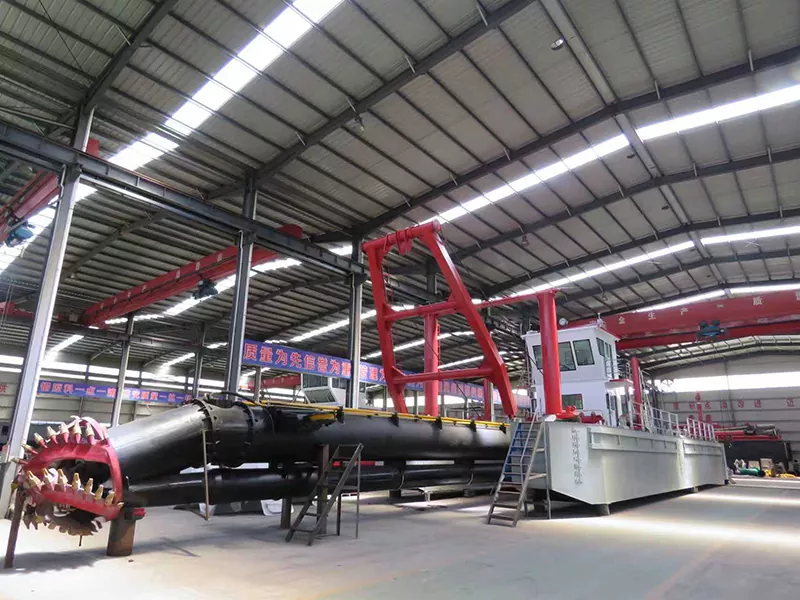

Hydraulic Dredger Ship

From the initial steel grit blasting to the final multi-stage marine coating, our ISO9001 and BV certified facility implements a zero-defect quality protocol. When you choose a Dingke dredger Hydraulic Dredger Ship, you are investing in a vessel born from elite craftsmanship, engineered to endure the harshest aquatic environments with unwavering structural integrity.

Technical Highlights

Advanced Hydraulic Architecture

Unlike conventional mechanical drives, the Dingke dredger’s Hydraulic Dredger Ship utilizes a sophisticated high-pressure closed-loop circuit designed for maximum torque density.

● Load-Sensing Technology: Our system automatically adjusts the hydraulic flow based on the resistance encountered by the 1800mm cutter head. This prevents engine stalling and optimizes fuel consumption by only delivering power when and where it is needed.

● Vickers & Rexroth Standardized Components: We integrate world-class T6ED series pumps and multi-disc hydraulic brakes. This standardization ensures that operators can achieve stepless speed regulation of the winches and ladder, providing "surgical precision" during delicate river cleaning or harbor maintenance.

● Thermal Management & Filtration: To ensure 24/7 operation in tropical or high-heat environments, every ship features a high-capacity forced-air cooling system and multi-stage High-Flow Return Oil Filters, maintaining hydraulic oil purity and preventing component wear.

Hydraulic Dredger Core Specifications

FAQ

Q1: How does Dingke dredger test the hydraulic systems before shipping?

A: Every Dingke dredger’s Hydraulic Dredger Ship undergoes a 24-hour continuous "Stress Test" at our factory’s water testing tank. We monitor pressure stability, oil temperature, and seal integrity under maximum load to ensure the vessel is 100% mission-ready upon arrival.

Q2: What is the advantage of hydraulic winches over electric ones in dredging?

A: Hydraulic winches offer much higher starting torque and inherent overload protection. They are completely sealed against water and salt corrosion, making them significantly more durable for the "swing and lift" cycles required in industrial dredging missions.

Q3: Can the hydraulic system be monitored remotely?

A: Yes. Our high-end models (DK500+) can be equipped with a Digital Hydraulic Monitoring System. This allows operators to track pressure, flow, and filter status on a real-time PLC dashboard, preventing issues before they cause downtime.
