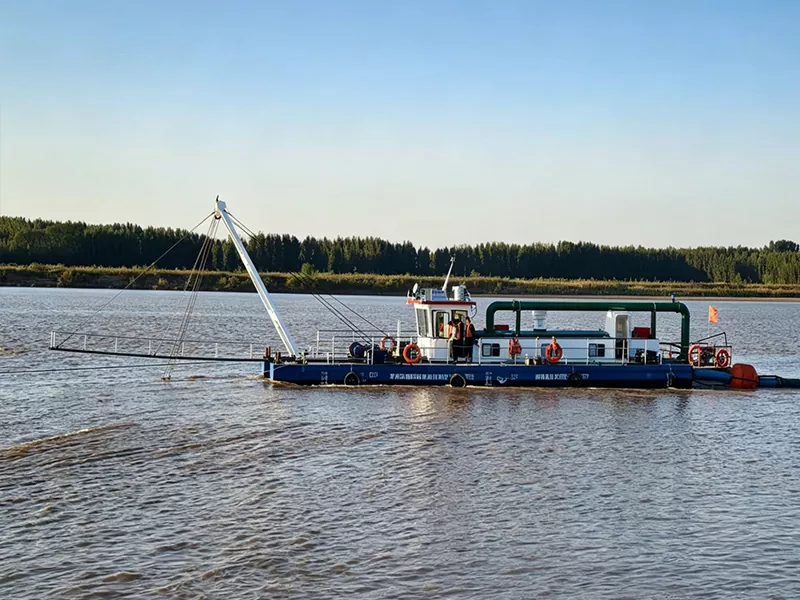

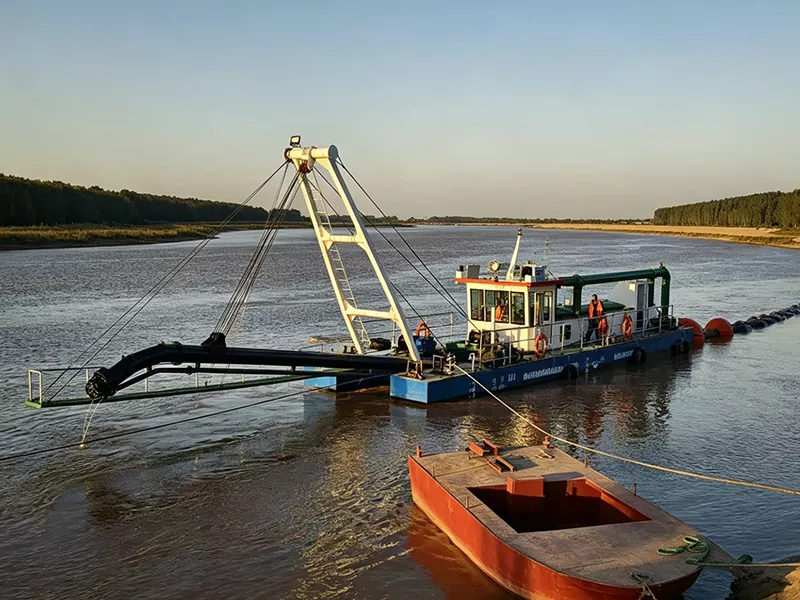

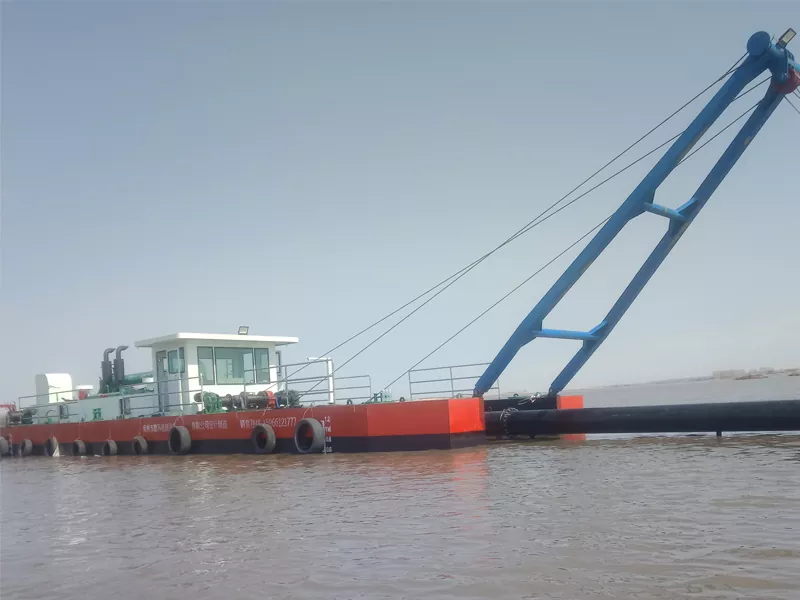

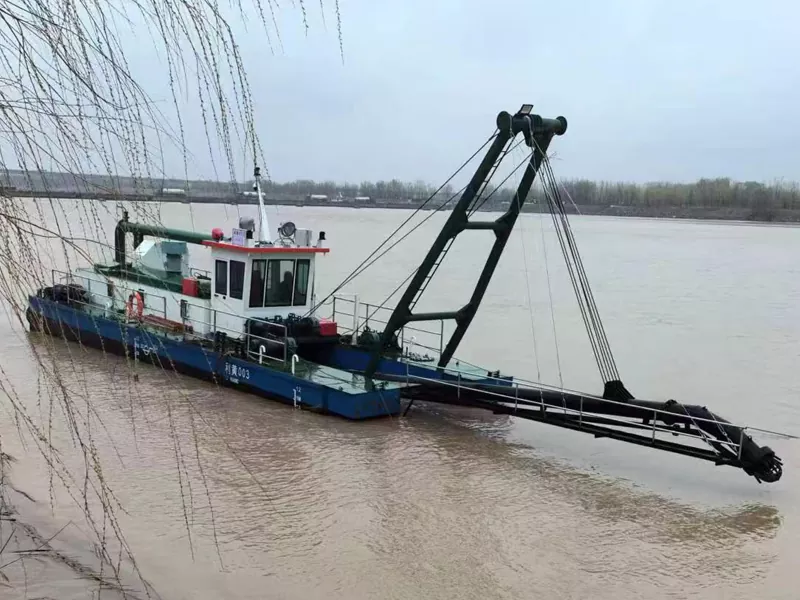

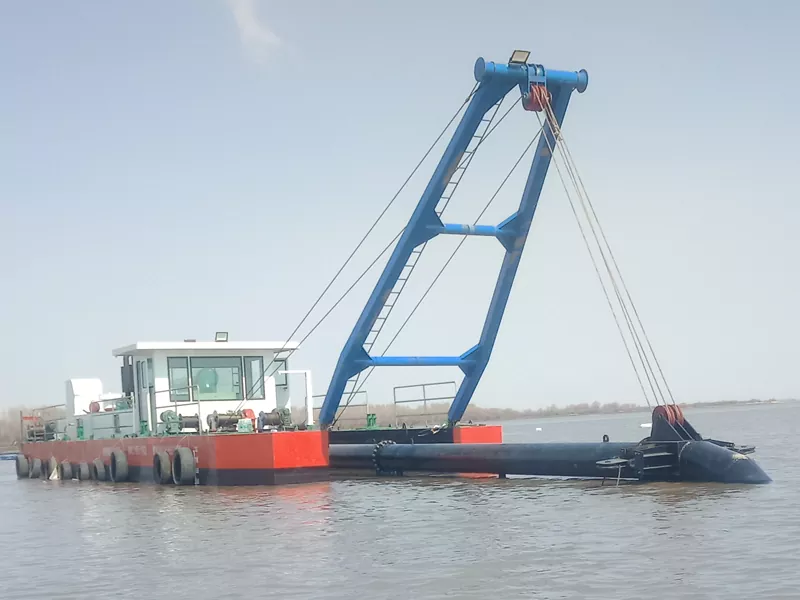

Jet Mining Suction Dredger

Traditional cutter dredgers are limited by ladder weight and mechanical complexity at great depths. The Jet Mining Suction Dredger excels here, achieving dredging depths of 20m to 35m+. By using a high-pressure jet to "boil" the sand bed, it maintains a stable vacuum at depths where mechanical systems struggle, ensuring a constant flow for large-scale construction sand supply.

In alluvial mining, heavy minerals like gold often settle deep within loose gravel. Our Jet Mining Suction Dredgers utilize a specialized "Jet-Venturi" effect to lift high-specific-gravity minerals without the turbulence caused by mechanical cutters. This results in a cleaner raw feed for on-board sluice boxes or centrifugal concentrators, significantly increasing the overall recovery rate.

We equip our Jet Mining Suction Dredgers with dedicated 30kW-122kW high-pressure water pumps. This secondary power system feeds a multi-nozzle jet head that "blasts" the underwater soil, turning solid ground into a flowable slurry (Fluidization) before it even reaches the suction intake.

Because there are no rotating cutter teeth or gearboxes underwater, the Jet Mining Dredger experiences significantly less mechanical fatigue. This translates to a 40% reduction in maintenance costs compared to cutter dredgers, especially when working in high-abrasion silica sand environments.

The key to Jet Mining Suction Dredger efficiency is balance. Monitor the PLC dashboard to ensure the jet pump is providing enough pressure to fluidize the bed without "diluting" the slurry. Aim for a consistent 15%-25% solid concentration for optimal pumping.

Although jet dredging is "cleaner," natural beds contain roots and rocks. Every Dingke jet mining boat is fitted with a reinforced suction screen and a quick-access clean-out hatch on the slurry pump, ensuring the high-chrome alloy impeller is never damaged by oversized debris

FAQ

Q: Can a Jet Mining Suction Dredger handle hard-packed clay?

A: Jet suction is optimized for non-consolidated materials like sand, gravel, and silt. For extremely hard-packed clay or rock, we recommend our Cutter Suction Dredger series. However, for most river and mining sands, the jet system is faster and more cost-effective.

Q: What is the benefit of the "No-Cutter" design in terms of downtime?

A: Without a mechanical cutter, there are no hydraulic motors or gearboxes submerged in abrasive slurry. This eliminates the risk of seal failure and gear wear, allowing the Jet Mining Dredger to run for thousands of hours with only basic pump and engine maintenance.

Q: Do you offer customized jet head configurations?

A: Absolutely. Our Senior Engineers can customize the number and angle of the jet nozzles based on your specific soil density.
