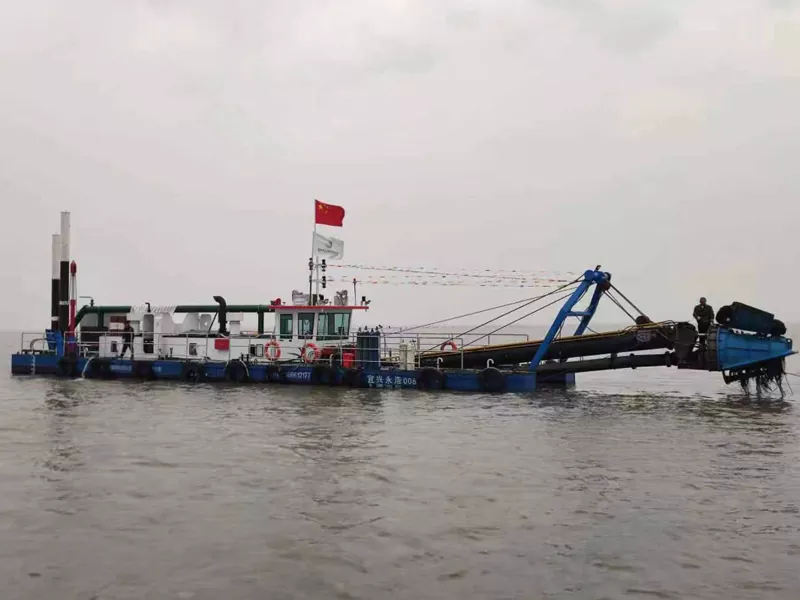

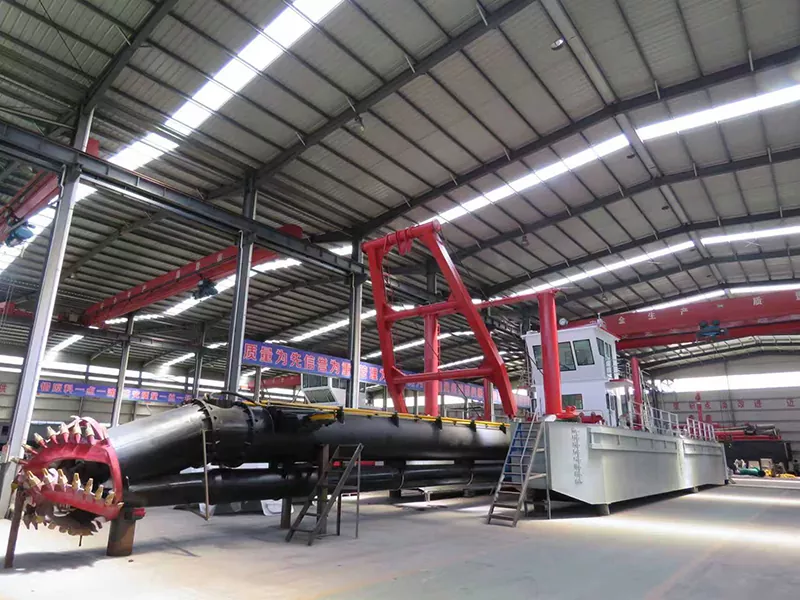

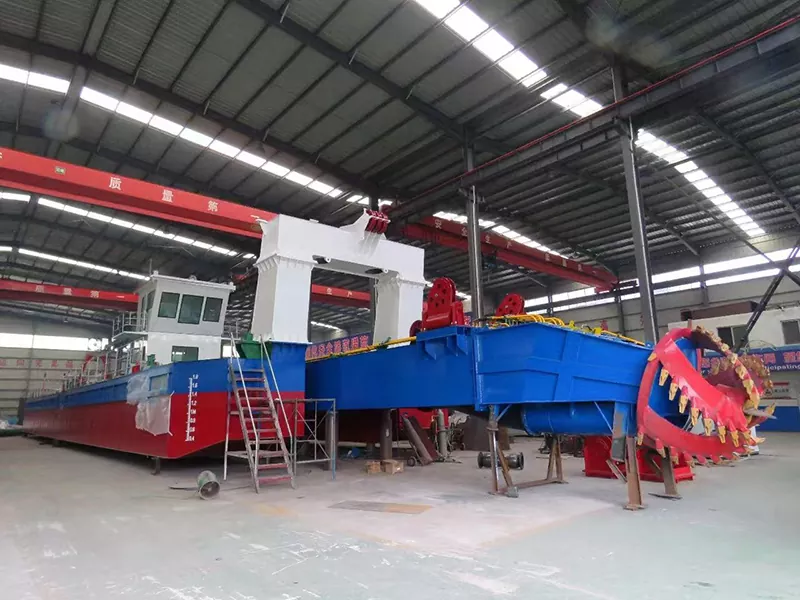

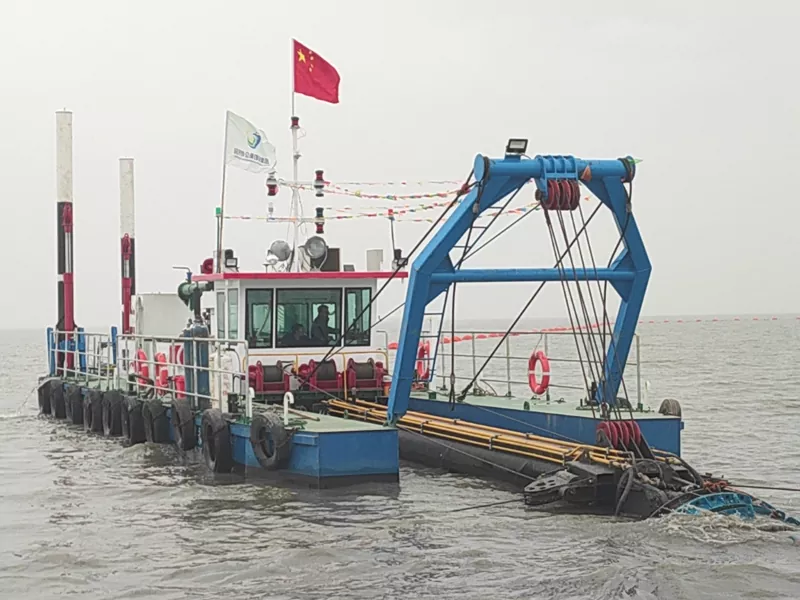

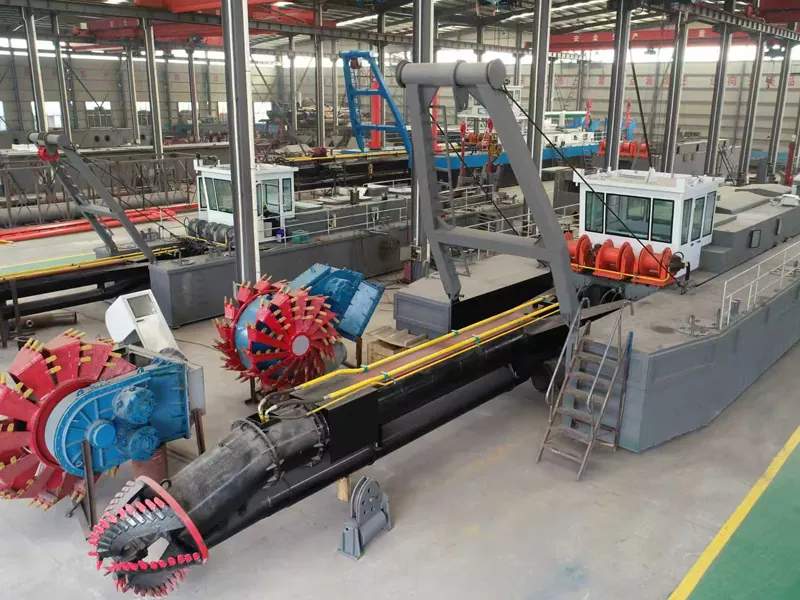

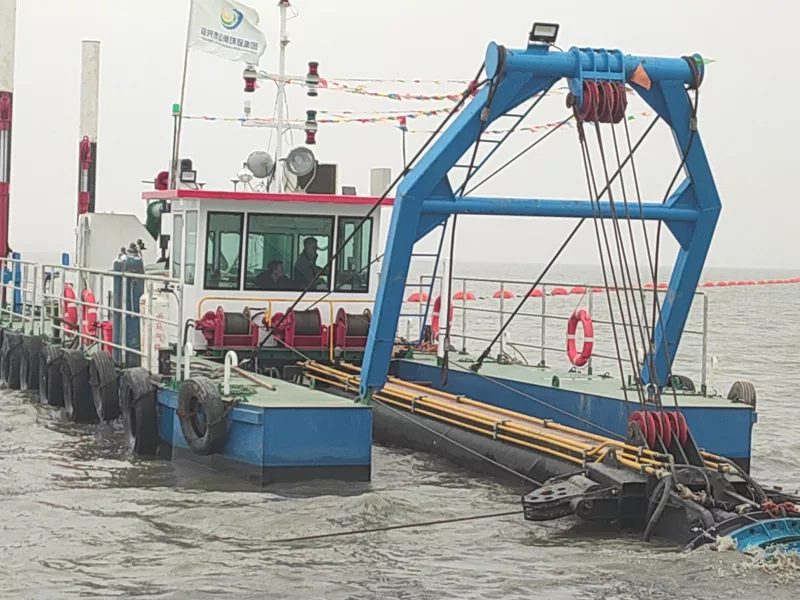

Mining Dredger Ship

The recovery of heavy minerals requires a Mining Dredger Ship that goes beyond simple earthmoving.

● Reinforced High-Torque Excavation: Mineral deposits are often found in "virgin ground" or compacted clay. The Mining Dredger Ship Series features reinforced alloy steel cutters and heavy-duty Ladder Winches, providing the essential breakout force to reach mineral-rich paystreaks.

● Modular Mineral Processing Interface: Our deck layout is optimized for the integration of Jigs, Magnetic Separators, or Centrifugal Concentrators. By performing primary separation on-board, we reduce the volume of waste material transported, drastically cutting energy and logistics costs.

● Extreme Abrasive Resistance: To combat the constant friction of mineral sands, we utilize Cr27 High-Chrome Alloy for all slurry pump components and thickened 12mm-25mm CCSB steel for high-impact areas. This ensures your Mining Dredger Ship stays operational while others are down for repairs.

Dingke dredger: Maximizing Your Mining Uptime

Heavy-duty mining environments are the ultimate test for any vessel. At Dingke dredger, we provide a structured maintenance framework to ensure your Mining Dredger Ship delivers peak performance over its entire lifecycle.

Preventative Maintenance Protocols

● Daily Hydraulic Checks: Inspect all hydraulic lines, fittings, and the T6ED series pumps for pressure stability. Maintaining oil purity through our multi-stage filtration system is the #1 way to prevent downtime.

● Lubrication Schedule: Ensure the 1800mm-2100mm cutter head bearings and all winch gearboxes are lubricated with high-viscosity marine grease every 8-12 hours of continuous operation.

● Impeller Inspection: For high-abrasion sand and ore mining, we recommend a weekly visual inspection of the High-Chrome Alloy pump casing and impeller for wear patterns.

Optimized Operational Techniques

● Managing Slurry Density: Utilize the PLC-controlled monitoring system to maintain the optimal solid-to-water ratio. If vacuum pressure rises sharply, activate the high-pressure water jet system to fluidize the intake, preventing pipeline blockages.

● Swing & Spud Coordination: In mineral-rich strata, use the 4m-stroke spud carriage to perform overlapping swing patterns. This "surgical dredging" ensures 100% recovery of the paystreak without leaving mineral-bearing sediment behind.

● Engine Load Management: The dual-engine configuration (Cummins/Weichai) is designed for synergy. Operate the main engine at 80-85% load for maximum fuel efficiency while directing auxiliary power to the heavy-duty cutter.

Critical Spare Parts Management

To support remote mining sites, Dingke dredger provides a "Mission-Ready Spare Kit" with every vessel, including:

● Alloy Cutter Teeth: Specifically hardened for mineral-rich clay and sand.

● Pump Wear Liners & Seals: To ensure the WN series pump maintains vacuum integrity.

● Hydraulic Filter Elements: 10-20 micron filters to keep the system's "blood" clean.
